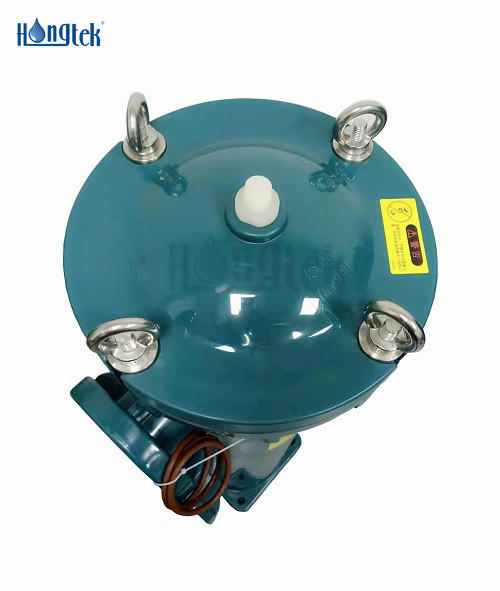

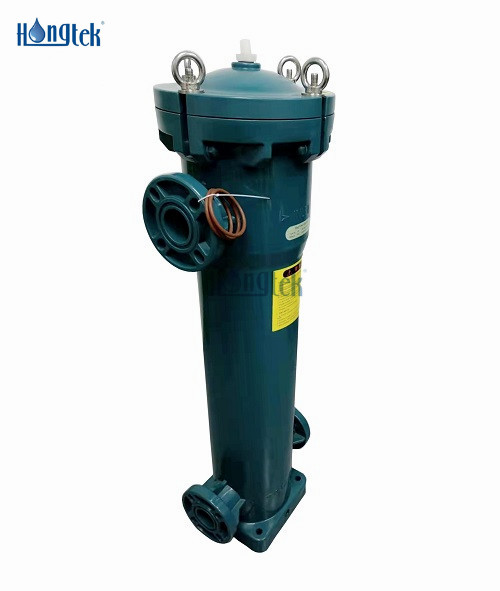

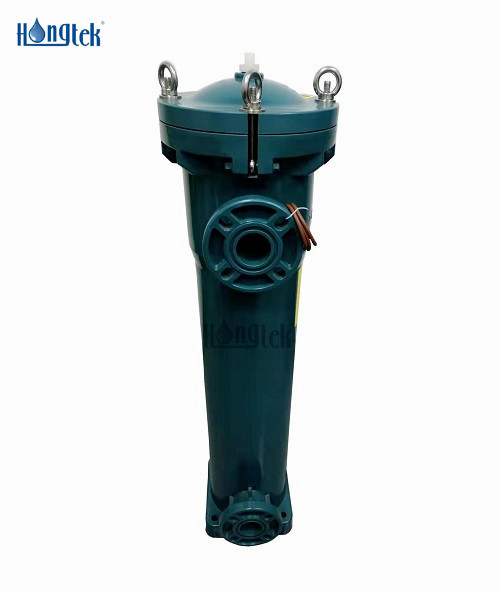

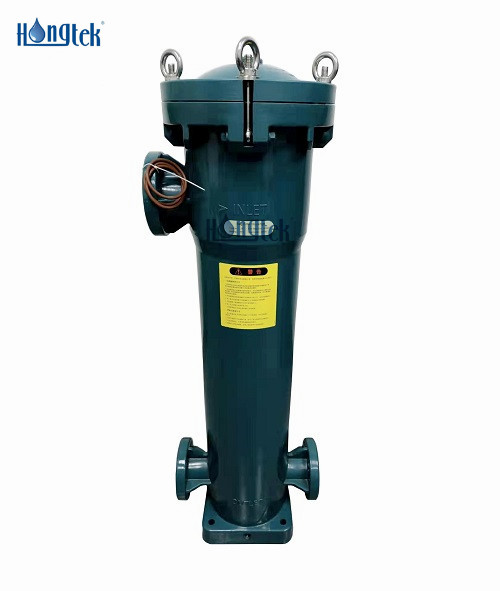

PPC Series Swing Bolt Cap Type PPH Plastic Single Size# 2 Polypropylene Filter Bag Housing is integrally injection-molded with PP reinforced polypropylene material. Polypropylene Homopolymer(PPH) plastic filter bag housing has the features and advantages that the stainless steel filter housing does not have. PPH plastic filter bag housing is an innovative product developed for the filtration of some strong acids, alkalis and strong corrosive liquids. With the excellent chemical resistance of the PPH plastic material, the PPH plastic filter housing can meet the filtration applications of many chemical acid and alkali liquids, greatly improving the temperature resistance and strength, making up for the shortcomings of ordinary plastic and stainless steel filter housings, effectively solve the disadvantages of high investment costs when filter strong corrosive liquids at a certain flow rate. PP plastic filter bag housing has no joints, no dead angle, large flow rate, high filtration efficiency and long service life. PPH filter bag housing is a high quality, high efficiency, economical and practical excellent micron filtration system.
| Housing Material | PPH(Polypropylene Homopolymer) |
| Housing Direction | Vertical |
| Bag Size | Size #2: Φ7"x32"L(Φ180x810mm) |
| Number of Bag | Single |
| Housing Thickness | 16mm |
| Filtration Rating | 1μm - 800μm |
| Connection | Side Port |
| Inlet/Outlet Type | Flange |
| Inlet/Outlet Size | DN50, DN65, DN80 |
| Sealing Type | Swing Bolt Cap Type |
| Seal Material | Viton |
● High pressure resistance, acid and alkali resistance, high temperature resistance
● Quick installation, simple replacement of filter bags, saving time and labor, and low maintenance costs
● Simple structure, strong pressure resistance of filter basket, good sealing performance of swing bolt cap
● PP filter bag housing is high safety factor, stable performance and filtration efficiency, and long service life
● All sealing rings of PPH plastic filter bag housing are made of fluorine rubber, with good corrosion resistance
● Petrochemical
● Food Production
● Chemical Production
● Industrial Wastewater
● Seawater Desalination
● Electroplating Industry
● Pharmaceutical Production
Operation Data for PPH Single Size#2 Polypropylene Filter Bag Housing
| Max. Temperature | 90°C |
| Max. Pressure | 116psi(8bar) |
| Liquid Flow Direction | Side in and side out |
| Flow Rate(Single Filter Bag) | Size #2 (Φ7"x32"): 40m³/h |
| Filtration Area(Single Filter Bag) | Size #2 (Φ7"x32"): 0.5㎡ |
| Bag Housing Capacity/Weight | Size #2 (Φ7"x32"): 32L/24.2KG |

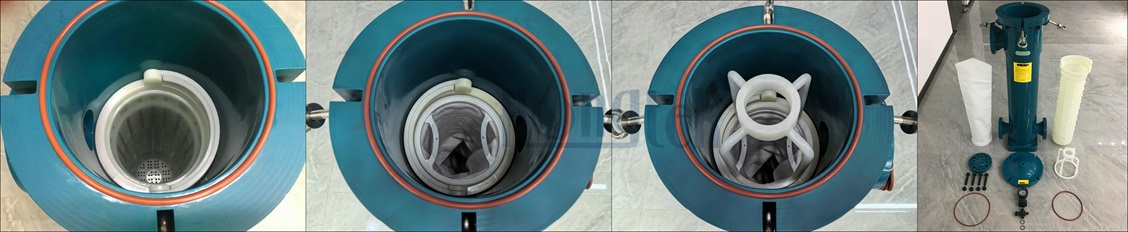

Installation of PPH Single Size#2 Filter Bag Housing
● Large flow rate, small footprint, convenient maintenance and cost savings
● Suitable for installing size#2 filter bag according to international standards
● Supporting plastic pressure gauges and exhaust valves, acid, alkali and corrosion resistant
● The filter basket and top cover both have sealing rings to ensure that the housing has no side leaks
● Installing or replacing filter bags does not require other tools, manual operation is convenient and simple

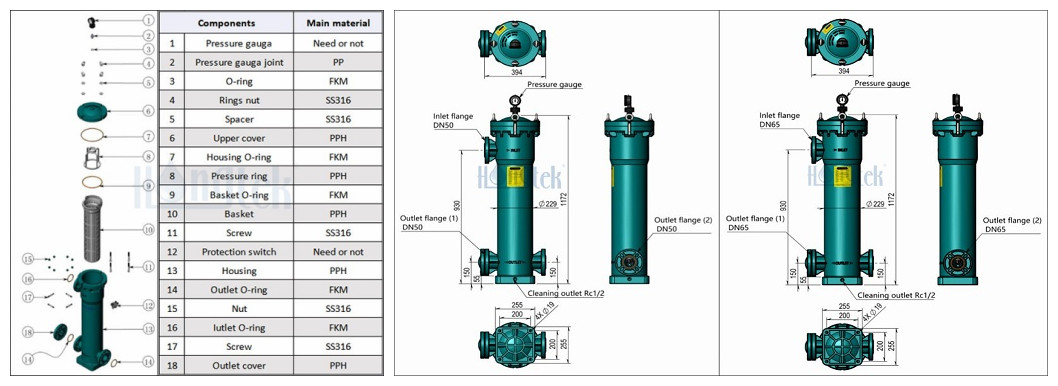

Components & Drawing of PPC Series Polypropylene Size#2 Bag Filter Housing
● It is convenient to replace the filter bag and save labor costs
● The water inlet and outlet are connected by flange, which is sturdy and durable
● The structure of PPH Bag Filter Housing is simple, easy installation and cleaning and maintenance
● The structure is firm and reliable, without any welding points, which completely solves the problem of liquid leakage
● The design of the upper cover with the lifting ring screw has good sealing performance, which is convenient to open and lock the barrel cover

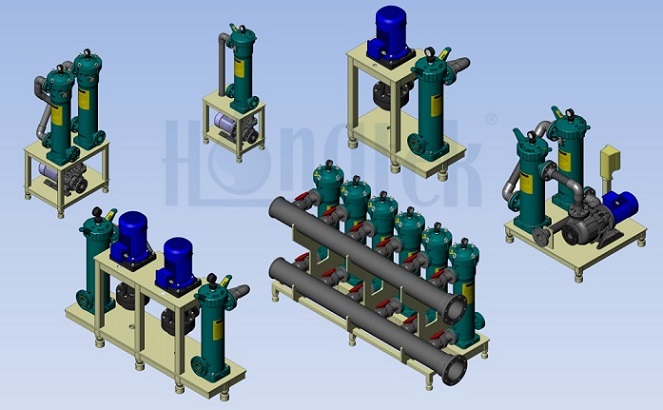

Polypropylene Bag Filter Housing Parallel Installation Method
● Increase liquid flow rate while saving space
● Simple structure, easy to install, clean and replace filter bags
● The filtration system can be designed according to actual usage scenarios
● According to needs, can set up multiple bag filter housing in parallel to increase the flow rate
● Standard specifications of bag filter housings, the inlet and outlet use the international flange
| PPC | Bag Dimensions | Number of Bag | Inlet/Outlet Size(Flange) |
PPC Series PPH Single Size# 2 Filter Bag Housing | S2 = Size #2 (Φ7"x32") | 1 = 1pc | N50 = DN50 |
| N65 = DN65 | |||
| N80 = DN80 |
For Example:
PPC-S2-1-N50
PPC Series PPH Single Filter Bag Housing - Size #2 (Φ7"x32") - 1pc - DN50
