HFA Series Pleated High Flow Filter CartridgesHFA Series Pleated High Flow Filter CartridgesHFA Series Pleated High Flow Filter Cartridges

HFA Series Pleated High Flow Filter Cartridges

Description

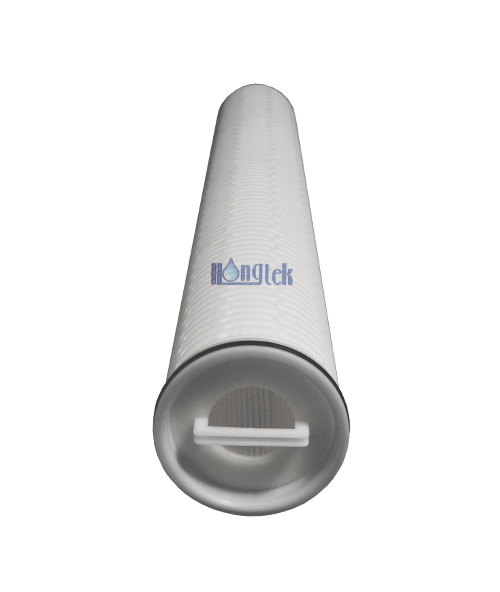

HFA Series Pleated High Flow Filter Cartridges are Pall Ultipleat high flow cartridge filters replacement, high quality pleated cartridges manufactured by Hongtek. The outer diameter usually made 6 inch (152mm). High flow filters can be made coreless or inner central core with outer hard cage, single open end when the another end is sealed by O-ring end cap.

Liquid flow pattern of high flow filter cartridge is from inside to outside. The large diameter geometrical design of polypropylene pleated high flow filter cartridges enlarge surface filtration area, strengthen dirt holding capacity to save the quantities of filter cartridges and improve flow rate when filtration efficiency exceed 99%. High flow pleated cartridges have wide range of chemical compatibility and applications, making them the ideal option for industrial high flow water filtration system to protect RO membrane.

Specification
Filter MediaPolypropylene(PP) Pleated
Length20"(508mm), 40"(1016mm), 60"(1524mm)
Outside Diameter6 inch (152mm)
Inside Diameter73.5mm
Filtration Rating1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
OutsideRigid Hard Cage, Stainless Steel(special)
Seal MaterialEPDM, Buna-N, Viton


Feature

● Gradient pore structure of pleated high flow filters provide layered filter functions

● Outer hard cage can withstand higher pressure than high flow filters made by soft netting

● The reduction of filtration system space could be maximized to 50% so as to lower maintenance costs

● The highest flow rate of high flow pleated cartridges could get 110 M³/H and Beta 5000 rated (99.98% efficiency)

● Inside to outside filtration pattern of high flow filters ensure holding all impurities stayed inside the pleated media

● High flow pleated cartridges are more economical because of high filtration efficiency and lower waste disposal costs

● Materials meet FDA requirements with wide chemical compatibility, no resins, binders, or adhesives and 100% integrity testing


Application

● Paints and coatings

● Microelectronic, film and resin

● Water treatment in Power generation

● RO Pre filtration and sea water desalination

● Solvents, API and water filtration in Bio field

● Bottled water, high fructose, edible oil, soft drink and milk


Performance

Operation Data of HFA Series Pleated High Flow Filter Cartridges

Maximum Operating Temperature180°F @ 20 psid (82°C @ 1.4 bar)
160°F @ 30 psid (71°C @ 2.1 bar)
77°F @ 50 psid (25°C @ 3.4 bar)
Suggested Maximum Flow Of Water20inch length: 660 LPM
40inch length: 1,300 LPM
60inch length: 1,900 LPM
Liquid Flow DirectionInside to outside
Typical Surface Area 3.5㎡ per 20" filter cartridge
7㎡ per 40" filter cartridge
10.5㎡ per 60" filter cartridge
Recommend Change out Differential Pressure2.5 Bar at 20 ℃

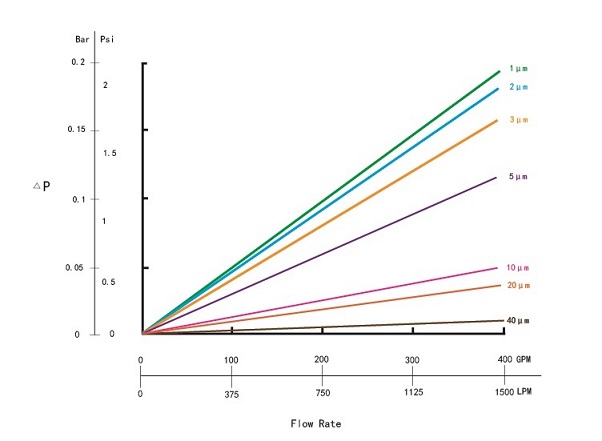

Pressure-Drop Rate for 40" HFA Series Pleated High Flow Filter Cartridges


Tech Support

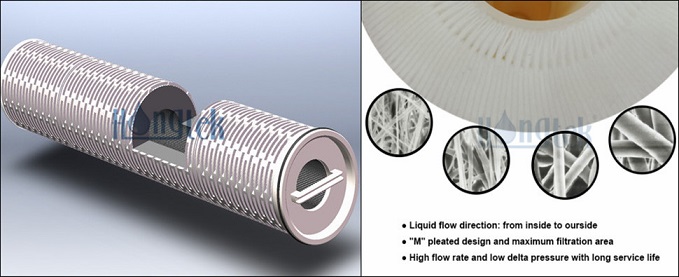

Design for High Flow Filter Cartridges


● Powerful technical team can help to customize the special pleated high flow filters

● The 3D high-end design show the advantages of structure Pall Ultipleat high flow filters replacement

● The complete design is very important to research, development and manufacture of high flow pleated cartridges

● Pay high attention to every detail, better design to create higher quality of high flow filter cartridges for water filtration system


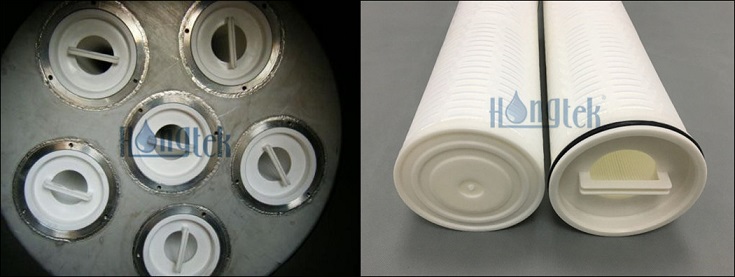

Installation of Pleated High Flow Filter Cartridges

HFA Series Pleated High Flow Filter Cartridges

● High flow filter cartridges are inside to outside flow pattern and no bypass and long working life

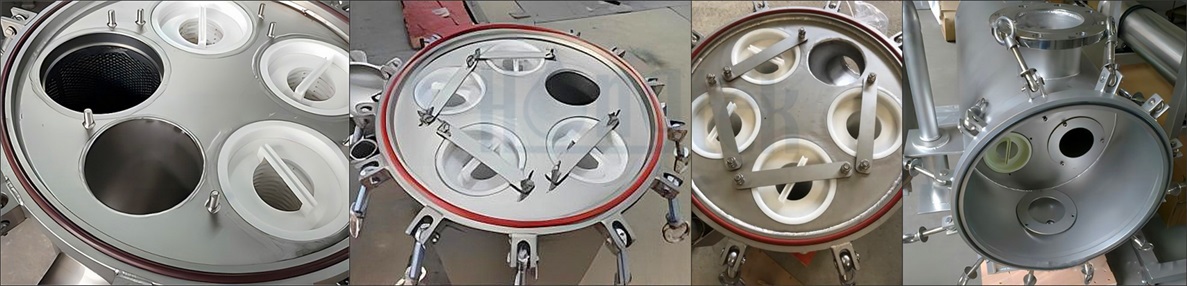

● Suitable for installing vertical or horizontal stainless steel filter housings and plastic filter housings

● Outside hard cage to make stable structure and 100% integrity, can added inner core when needed

● High flow rate & low delta pressure, nominal or absolute rated filters are designed to meet requirement

● Smaller footprint and more economical water filtration systems, lower maintenance and waste disposal costs

● Easy to install and replace, saving manpower and maintenance costs, suitable for international standard filter housings


Order Information
HFAMaterialLengthFiltration Rating

O-ring

 Material

Inside (selective)

HFA Series

Pleated High Flow

Filter Cartridges

P = PP Pleated20 = 20"(508mm)1 = 1μmE = EPDMC = Central PP core
2 = 2μm
3 = 3μm
40 = 40"(1016mm)5 = 5μmB = Buna-N
10 = 10μm
 20 = 20μm
 60 = 60"(1524mm) 40 = 40μm V = Viton
 50 = 50μm
 70 = 70μm
100 = 100μm

For Example:

HFA-P-40-5-E

HFA Series Pleated High Flow Filter Cartridges - Material: Polypropylene - Length = 40" - Filtration Rating = 5μm - O-ring Material = EPDM

Special specifications high flow pleated cartridges can be customized, such as central PP core, special end caps or Stainless Steel outside cage etc.
