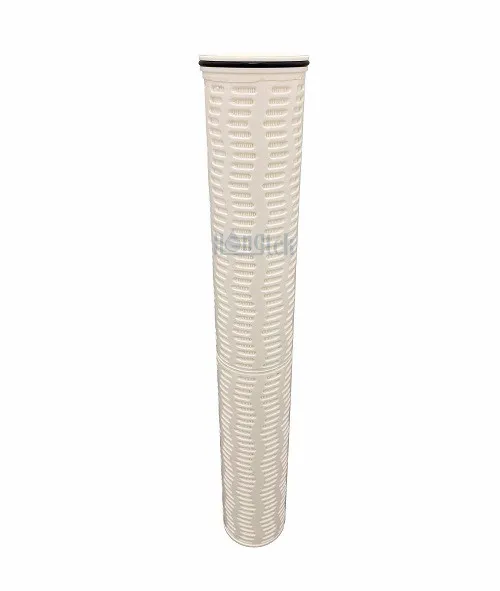

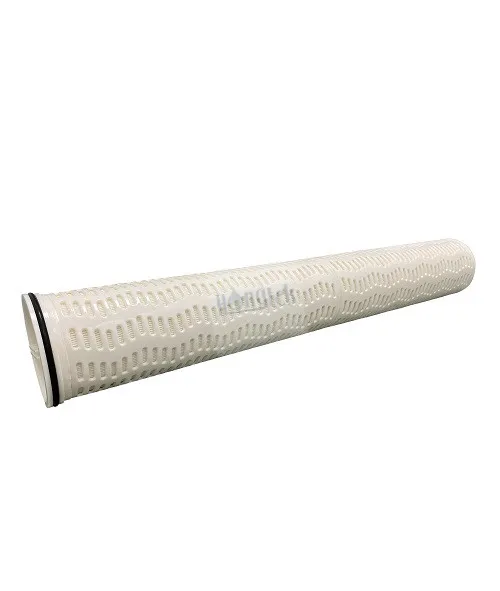

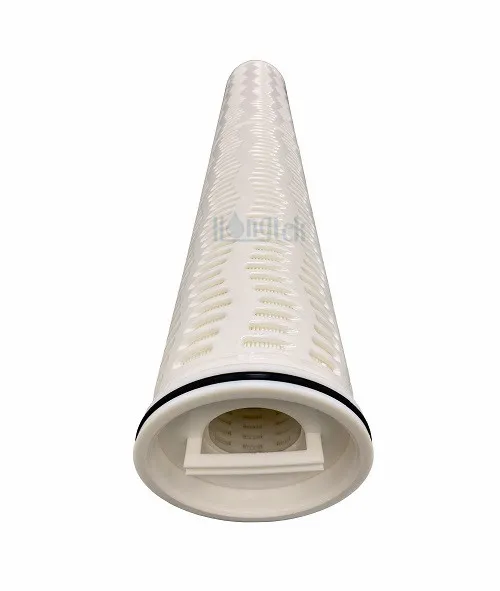

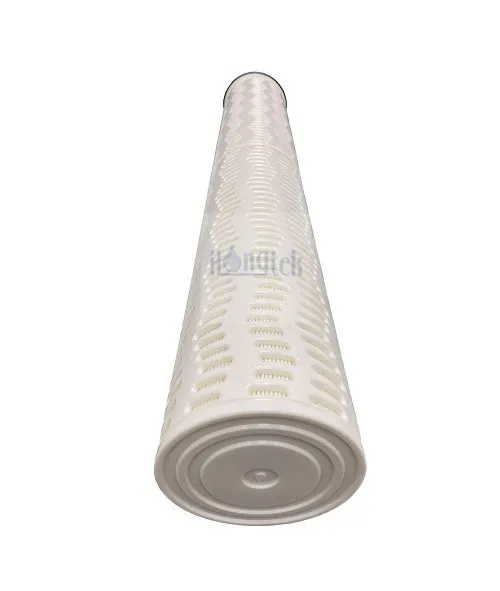

PBT Series Polyester Pleated High Flow Filter Cartridges are made of polybutylene terephthalate non-woven media with all PBT support material, which offer high temperature and excellent chemical resistance ability. With 6inch(152mm) larger diameter, inside to outside flow direction design, PBT high flow filters expand effective filtration area significantly, reducing the quantity of filter cartridge and the size of housing required.
The unique filtration media of PBT offers broad chemical compatibility and results in an excellent filtration efficiency, which largely reduces the burden of downstream process for particle removal applications, such as cooling water filtration, RO pre-filtration, seawater desalination, amine circulation filtration and kinds of chemical solution filtration.
| Filter Media | PBT(Polybutylene Terephthalate) |
| Length | 20"(508mm), 40"(1016mm), 60"(1524mm) |
| Outside Diameter | 6"(152mm) |
| Inside Diameter | 73.5mm |
| Filtration Rating | 1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm |
| Support/Drainage | PBT |
| End Cap Material | High Strength PBT |
| Outside | High Strength PBT Cage |
| Seal Material | EPDM, Buna-N, Viton |
● Handle design of PBT pleated cartridges lead to much faster, easier filter change out
● High flow rate per PBT high flow filter cartridge, up to 50% smaller filter system possible
● Larger filtration surface leads to higher flow rate, maximum dirt holding capacity, extending service life
● Absolute-rate filter media for reproducible performance, available in a variety of filter lengths and grades
● Inside-to-outside flow pattern that traps contaminant inside PBT pleated filters, prevents housing pollution
● Coating
● Process water
● Organic solvents
● Fine chemical industry
● Cooling water filtration
● Magnetic media dispersions
● Corrosive fluids and oxide water
Operation Data of PBT Pleated High Flow Filter Cartridges
| Maximum Operating Temperature | 120℃ |
| Suggested Maximum Flow Of Water | 20inch length: 660 LPM |
| 40inch length: 1,300 LPM | |
| 60inch length: 1,900 LPM | |
| Liquid Flow Direction | Inside to outside |
| Typical Surface Area | 7㎡ per 40" filter cartridge |
| 10.5㎡ per 60" filter cartridge | |
| Maximum Pressure | 4 bar |
| Recommend Change out Differential Pressure | 2.5 Bar at 20 ℃ |
Installation of of PBT Pleated High Flow Filter Cartridges
● The top sealing requirements for plastic filter housings are relatively high, ensuring easy installation and replacement for easy operation
● The selection of O-ring material for PBT pleated filters are very important. Generally, materials with good liquid compatibility, such as Viton
● The liquid flow direction is in and out, so the sealing of the PBT high flow cartridges at the open end is very important to ensure no side leakage
● Due to the longer length of the 60 inch PBT high flow filters, its usually suitable for horizontal filter housings for easy installation and replacement
● In addition to being suitable for stainless steel filter housings, PBT pleated high flow filter cartridges can also be installed with plastic filter housings
● PBT high flow filter cartridges have excellent compatibility with acidic and alkaline solutions, making them widely applicable in the chemical industry
● 20 inch high flow cartridges are usually installed in vertical filter housings, while 40 inch cartridges are suitable for vertical or horizontal filter housings
PBT Series Polyester Pleated High Flow Filter Cartridges Manufacturing
● The filter material and cage are all made of PBT material, so the most advanced infrared welding equipment is required.
● High quality PBT filter material and large pleated area structure extend the service life of the filter cartridges and save user costs.
● PBT high flow filter cartridges made of all polyester material can use a multi-layer structure to achieve absolute filtration efficiency.
● PBT membrane material compensates for the shortcomings of PP membrane, with high-precision filtration and high flow rate, meeting user needs.
● PBT high-strength cage has strong compressive strength, acid, alkali, and high temperature resistance, suitable for filtration in the chemical industry.
| PBT | Material | Length | Filtration Rating | O-ring Material | Inside (selective) |
PBT Series Polyester Pleated High Flow Filter Cartridges | T = PBT Polyester | 20 = 20"(508mm) | 1 = 1μm | E = EPDM | C = Central PBT core |
| 2 = 2μm | |||||
| 3 = 3μm | |||||
| 40 = 40"(1016mm) | 5 = 5μm | B = Buna-N | |||
| 10 = 10μm | |||||
| 20 = 20μm | |||||
| 60 = 60"(1524mm) | 40 = 40μm | V = Viton | |||
| 50 = 50μm | |||||
| 70 = 70μm | |||||
| 100 = 100μm |
For Example:
PBT-T-40-5-V-C
PBT Series Polyester Pleated High Flow Filter Cartridges - Material: PBT - Length = 40" - Filtration Rating = 5μm - O-ring Material = Viton - C = Central PBT core
