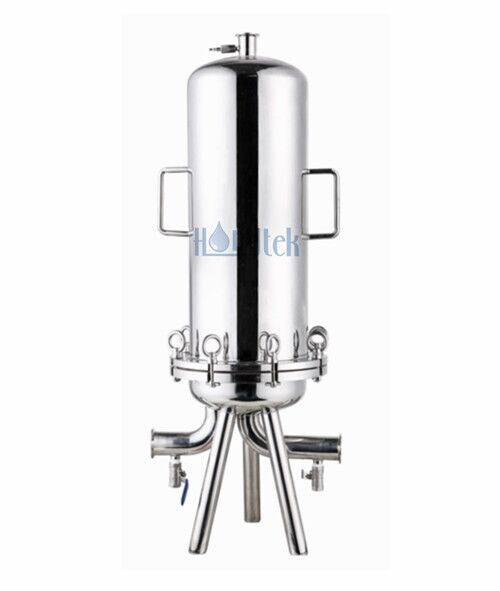

MPH Series Stainless Steel Sanitary Multi Cartridge Filter Housing is composed of a microporous membrane pleated filter element and a sanitary 304 or 316L stainless steel housing, SS sanitary cartridge housing is equipped with a multi cartridge filters. SS sanitary multi cartridge housing is connected by a quick-fit clamp or quick-opening ring bolt, which is convenient for loading and unloading the filter element and cleaning the filter. The inner surface of sanitary multi cartridge filter housing is mirror polished (roughness Ra≤0.3μm).
The inside and outside of SS sanitary multi cartridge housing are finely polished, and there is no dead corner. Sanitary cartridge housing is small size, light weight, easy to use and clean, large filtration area, low clogging rate, high filtering speed, good thermal dilute stability and chemical stability. Stainless steel sanitary cartridge housing is widely used in fine filtration and sterilization processes.
| Housing Material | SS304, SS316L |
| Vent Vale/Drain Valve | SS304 |
| Finish Type | Polishing |
| Polishing Precision | 0.3µm inner surface, 0.4µm outside surface |
| Cartridge Length | 10", 20", 30", 40" |
| Cartridge Size | OD 2.5" pleated filter |
| No. of Cartridge | Multiple Cartridges |
| Connection | Swing Bolts, Clamp |
| Inlet/Outlet | Flange, Thread |
| Seal Material | EPDM, Silicon, Buna N, Viton |
| Cartridge End Cap | 222 O-ring, 226 O-ring |
● High quality sanitary stainless steel 304/316L construction, so has long service life
● SS sanitary multi cartridge housing is easy to install and replace the filter element
● The filter cartridge and housing are no media shedding, stable high performance
● Sanitary cartridge housing is high temperature resistance, acid and alkali resistance
● Sanitary filter housing is high filtration rating, high filtration efficiency and high flow
● The inner wall of the housing reaches 0.3 micron and the outer wall reaches 0.4 micron
● Medicine
● Pre RO/DI
● Electronics
● Mineral Water
● Fine Chemicals
● Food & Beverage
● High Purity Water
Operation Data for Stainless Steel Sanitary Multi Cartridge Filter Housing
| Max. Temperature | 130℃ |
| Design Pressure | 1.0 Mpa or according to requirement |
| Max. Pressure | 0.8 Mpa or according to requirement |
| Sterilization | Online sterilization 121±2℃ 30min/time |
| Sterilize in a sterilizer 30min/time |
Sanitary Stainless Steel Filter Housings Production Workshop Display
Sanitary stainless steel filter housings find applications in industries where maintaining strict hygiene standards is crucial, especially in environments where the risk of contamination needs to be minimized. Some common applications include:
● Cosmetics and Personal Care Products: Sanitary filter housings are employed in the production of cosmetics, toiletries, and personal care products to remove impurities and contaminants from ingredients and process fluids, ensuring product safety and consistency.
● Water Treatment: In water treatment facilities, sanitary stainless steel filter housings are used for purifying drinking water, process water, and wastewater. They help remove sediment, bacteria, algae, and other impurities, improving water quality and meeting regulatory standards.
● Food and Beverage Processing: Sanitary stainless steel filter housings are extensively used in the food and beverage industry for filtering liquids such as water, juices, dairy products, beer, wine, and other beverages. They help remove contaminants, particles, and microorganisms, ensuring product quality and safety.
● Pharmaceutical Manufacturing: In pharmaceutical production, maintaining sterile conditions is paramount to ensure the safety and efficacy of medications. Sanitary stainless steel filter housings are utilized to filter pharmaceutical liquids and gases, removing bacteria, viruses, and particulates from process streams.
● Biotechnology and Life Sciences: Industries such as biotechnology and life sciences require precise control over the purity of fluids used in various processes, including cell culture, fermentation, and purification. Sanitary stainless steel filter housings play a critical role in ensuring the sterility and quality of biological products.

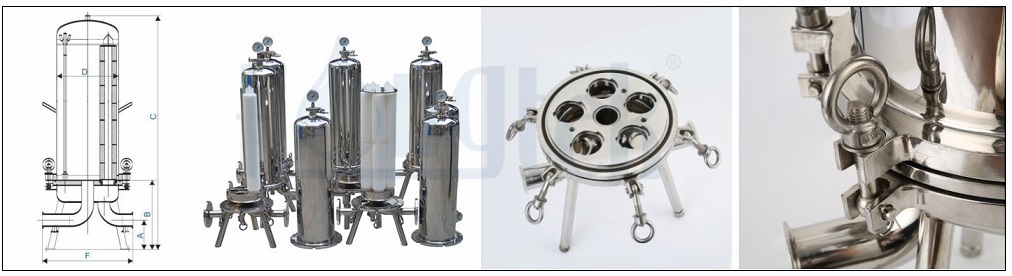

Detail of SS Sanitary Multi Cartridge Filter Housing
● The swing bolted o-ring closure and hinged cover design make cartridge change-out quick and easy
● 100% 316L stainless steel material of construction provides maximum durability and corrosion resistance
● Multi cartridge filter housing is available from 10" to 40" length filters to meet various flow rate requirements
● Mounting legs are adjustable, providing flexibility for installation height & orientation for different working condition
● Due to crevice-free, polished and hygienic design, sanitary filter housing is perfect choice for high purity and aseptic processing application
| MPH | Cartridge Length | Material | No. of cartridge | Inlet/Outlet Connection | Seal Material |
MPH Series Stainless Steel Sanitary Multi Cartridge Filter Housing | 10 = 10" | S4 = SS304 | 2R = 2pcs | F = Flange | S = Silicon |
| 3R = 3pcs | |||||
| 20 = 20" | 4R = 4pcs | E = EPDM | |||
| 5R = 5pcs | |||||
| 30 = 30" | S6 = SS316L | 8R = 8pcs | T = Thread | B = Buna N | |
| 12R = 12pcs | |||||
| 40 = 40" | ↓ | V = Viton | |||
| 60R = 60pcs |
For Example:
MPH-40-S6-8R-F-B
MPH Series Stainless Steel Sanitary Multi Cartridge Filter Housing - 40" - SS316L - 8pcs - Flange - Buna N
Please note: Due to the variety of filter housing designs, please contact Hongtek sales for more information, housings can be customized according to your requirement, thank you!
