Hongtek CRP Series FRP Multi Cartridge Filter Housing is designed for process filtration requiring large flow rate which capacity from 5pcs to 22pcs OD 2.5" depth water filter cartridges. FRP multi cartridge housing is made of FRP (Fibre Reinforced Plastic), filter cartridges are changed out quick, easy and safe. FRP multi cartridge housing accepts different type of cartridge filter and end cap styles in DOE and SOE, easy to install and low maintenance cost. FRP multi filter housing is long service life, large flow rate, good dirt capacity and high filtration efficiency. FRP multi cartridge filter housing is suitable for wide range of water processing projects, such as RO prefiltration, water treatment, food and beverage, power plant, sea water desalination etc..
| Housing Material | FRP (Fibre Reinforced Plastic) |
| Housing Direction | Vertical |
| Cartridge Length | 20", 30", 40" |
| Number of Cartridges | 5pcs, 12pcs, 22pcs |
| Installed Filter Type | OD 2.5" Depth Filter |
| Filtration Rating | 1μm - 200μm |
| Connection | Side Port |
| Inlet/Outlet Type | Flange, Clamp, Threaded |
| Inlet/Outlet Size | DN40, DN50, DN65, DN80, DN120, DN125 |
| Sealing Type | Swing Bolt Hinged |
| Seal Material | EPDM, Buna-N, Viton, Silicon |
● FRP filter housing is strong corrosion resistance, high temperature resistance and high strength
● FRP filter housing is suitable for water filtration system where stainless steel filter housing cannot be used
● FRP multi filter housing is large flow rate and long service life, good dirt capacity and high filtration efficiency
● FRP cartridge housing accepts different type and quantity of cartridge filter, easy to install and low maintenance cost
● FRP multi filter housing is designed for large flow rate which capacity from 5pcs to 22pcs OD 2.5" water filter cartridges
● Chemicals
● Power Plant
● RO Prefiltration
● Microelectronics
● Food & Beverage
● Cooling Water Filtration
● Industrial Water Treatment
Operation Data for FRP Multi Cartridge Filter Housing
| Max. Temperature | 5 - 66°C |
| Max. Pressure | 1 Mpa |
| Liquid Flow Direction | Side in and side out |
| Flow Rate | 20" 5pcs filters: 3m³/h |
| 30" 5pcs filters: 4m³/h | |
| 40" 5pcs filters: 5-7m³/h | |
| 40" 12pcs filters: 12-18m³/h | |
| 40" 22pcs filters: 22-30m³/h |

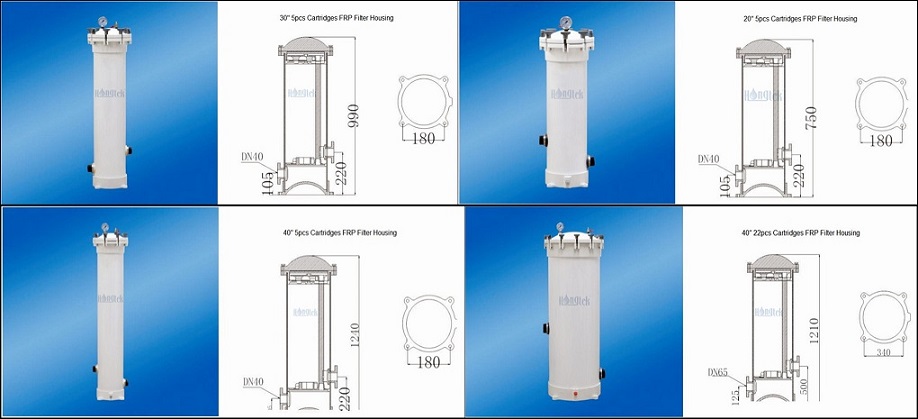

Sizes of FRP Multi Cartridge Filter Housings
● FRP multi filter housing can be desinged according to the flow rate requirements
● FRP multi cartridge filter housing for OD 2.5" filter is large flow rate, easy to install and maintain
● Strong dirt holding capacity and long service life, FRP multi filter housing is high filtration efficiency
● FRP cartridge housing is suitable for water filtration systems that cannot use stainless steel filter housing
FRP Cartridge Filter Housing Production Lines
| CRP | Filter Length | Round (No. of Filters) | Inlet/Outlet Type | Inlet/Outlet Size | O-ring Material |
CRP Series FRP Multi Cartridge Filter Housing | 20 = 20" | 5R = 5pcs | F = Flange | N40 = DN40 | E = EPDM |
| N50 = DN50 | |||||
| 30 = 30" | 12R = 12pcs | T = Threaded | N65 = DN65 | S = Silicon | |
| N80 = DN80 | |||||
| 40 = 40" | 22R = 22pcs | C = Clamp | N120 = DN120 | B = Buna-N | |
| N125 = DN125 | V = Viton |
For Example:
CRP-40-12R-F-N65-E
CRP Series FRP Multi Cartridge Filter Housing - 40" - 12 Round - Flange - DN65 - EPDM
For there are many different round of FRP mutil filter housings, please contact our sales team for detailed requirements
